多功能雷达形成多个波束
多功能雷达形成多个波束
多功能雷达(Multi-Function Radar, MFR)通过数字波束形成(Digital Beamforming, DBF)技术,可以形成多个波束,并实时调整波束方向和形状,以最大化信号接收并最小化噪声和干扰。以下是实现这一目标的基本步骤和相关的Verilog代码示例。
多功能雷达形成多个波束的基本步骤
1. 数字波束形成

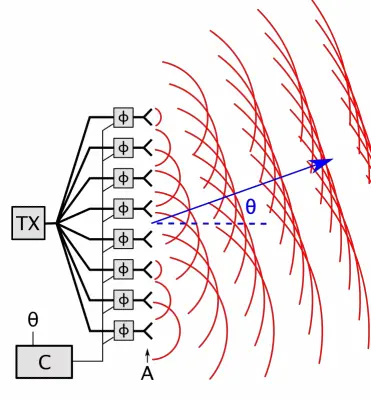

数字波束形成通过在接收端对不同天线元件的信号进行加权和相位调整,以形成一个或多个波束。DBF可以在数字域内灵活调整波束的方向和形状。
2. 自适应波束形成
自适应波束形成(Adaptive Beamforming)通过实时调整波束的加权系数,以最大化目标信号的接收强度并最小化干扰和噪声。常见的自适应波束形成算法包括最小均方误差(Minimum Mean Square Error, MMSE)和最小方差无失真响应(Minimum Variance Distortionless Response, MVDR)。
3. 噪声和干扰抑制
通过自适应滤波和波束形成技术,可以有效抑制噪声和干扰,提高信号质量。
实现过程
1. 数字波束形成模块
实现一个简单的数字波束形成模块,用于将接收到的信号加权并相位调整。
module digital_beamforming( input wire clk, input wire rst, input wire signed [15:0] data_in_real [0:7], input wire signed [15:0] data_in_imag [0:7], input wire signed [15:0] weight_real [0:7], input wire signed [15:0] weight_imag [0:7], output wire signed [15:0] beam_out_real, output wire signed [15:0] beam_out_imag ); reg signed [31:0] sum_real; reg signed [31:0] sum_imag; integer i; always @(posedge clk or posedge rst) begin if (rst) begin sum_real <= 32'd0; sum_imag <= 32'd0; end else begin sum_real <= 32'd0; sum_imag <= 32'd0; for (i = 0; i < 8; i = i + 1) begin sum_real <= sum_real + (data_in_real[i] * weight_real[i] - data_in_imag[i] * weight_imag[i]) >>> 15; sum_imag <= sum_imag + (data_in_real[i] * weight_imag[i] + data_in_imag[i] * weight_real[i]) >>> 15; end end end assign beam_out_real = sum_real[31:16]; assign beam_out_imag = sum_imag[31:16]; endmodule
2. 自适应波束形成模块
实现一个简单的自适应波束形成模块,用于实时调整波束的加权系数。
module adaptive_beamforming( input wire clk, input wire rst, input wire signed [15:0] data_in_real [0:7], input wire signed [15:0] data_in_imag [0:7], input wire signed [15:0] desired_signal_real, input wire signed [15:0] desired_signal_imag, output wire signed [15:0] weight_real [0:7], output wire signed [15:0] weight_imag [0:7] ); reg signed [15:0] weight_real_reg [0:7]; reg signed [15:0] weight_imag_reg [0:7]; reg signed [31:0] error_real; reg signed [31:0] error_imag; integer i; always @(posedge clk or posedge rst) begin if (rst) begin for (i = 0; i < 8; i = i + 1) begin weight_real_reg[i] <= 16'd0; weight_imag_reg[i] <= 16'd0; end error_real <= 32'd0; error_imag <= 32'd0; end else begin // 计算误差 error_real <= desired_signal_real - data_in_real[0]; error_imag <= desired_signal_imag - data_in_imag[0]; // 更新权重 for (i = 0; i < 8; i = i + 1) begin weight_real_reg[i] <= weight_real_reg[i] + (error_real * data_in_real[i] - error_imag * data_in_imag[i]) >>> 15; weight_imag_reg[i] <= weight_imag_reg[i] + (error_real * data_in_imag[i] + error_imag * data_in_real[i]) >>> 15; end end end assign weight_real = weight_real_reg; assign weight_imag = weight_imag_reg; endmodule
3. 顶层模块集成
将数字波束形成和自适应波束形成模块集成到多功能雷达系统中。
module multi_function_radar( input wire clk, input wire rst, input wire signed [15:0] rf_in_real [0:7], input wire signed [15:0] rf_in_imag [0:7], input wire signed [15:0] desired_signal_real, input wire signed [15:0] desired_signal_imag, output wire signed [15:0] radar_out_real, output wire signed [15:0] radar_out_imag ); wire signed [15:0] weight_real [0:7]; wire signed [15:0] weight_imag [0:7]; wire signed [15:0] beam_out_real; wire signed [15:0] beam_out_imag; // 实例化自适应波束形成模块 adaptive_beamforming abf_inst ( .clk(clk), .rst(rst), .data_in_real(rf_in_real), .data_in_imag(rf_in_imag), .desired_signal_real(desired_signal_real), .desired_signal_imag(desired_signal_imag), .weight_real(weight_real), .weight_imag(weight_imag) ); // 实例化数字波束形成模块 digital_beamforming dbf_inst ( .clk(clk), .rst(rst), .data_in_real(rf_in_real), .data_in_imag(rf_in_imag), .weight_real(weight_real), .weight_imag(weight_imag), .beam_out_real(beam_out_real), .beam_out_imag(beam_out_imag) ); assign radar_out_real = beam_out_real; assign radar_out_imag = beam_out_imag; endmodule
代码解释
数字波束形成模块:实现对接收信号的加权和相位调整,以形成一个波束。
自适应波束形成模块:实现对波束加权系数的实时调整,以最大化目标信号并最小化干扰和噪声。
顶层模块:将数字波束形成和自适应波束形成模块集成到多功能雷达系统中,实现多波束形成和实时调整。
通过上述实现,可以在多功能雷达系统中形成多个波束,并实时调整波束方向和形状,以最大化信号接收并最小化噪声和干扰。
